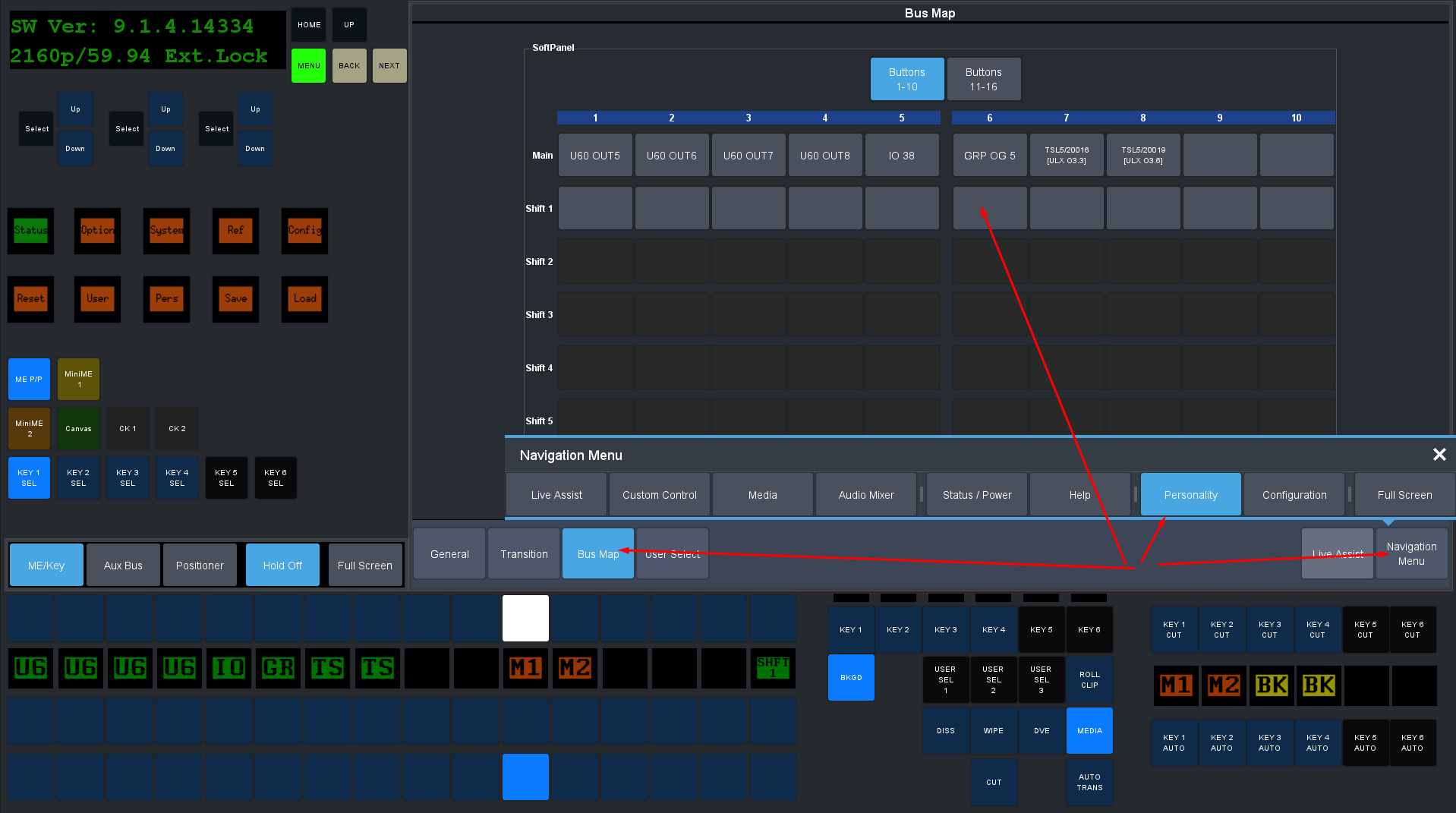

That image is showing the Soft Panel Bus map?
Are you asking where to change the physical panel bus map? If that is the question that is done on the Panel Connection instance of dashboard and the personality.
There are 4 DashBoard Connections for UI display. 5253 for the Main Panel, 5255 for Sat 1 Panel, 5256 for Sat 2 Panel and 5257 for the SoftPanel.
Each Panel requires it's own connection so that Panel Link and Personality settings (including each panel having it's own Bus Map) are all located in it's dashboard connection port.
------------------------------
Les O'Reilly
Director - Switcher Product Management
------------------------------
Original Message:
Sent: 05-01-2025 09:43
From: Jay Cofield
Subject: Map Soft Panel
quick follow up on the original question- is there a way to change the busmap in dashboard to show the panel? I tried your example, and it pulls up the softpanel like the image shows, but how can I get it to show the panel busmap instead? It's probably something simple I'm overlooking.
Thanks!
-Jay
------------------------------
Jay Cofield
University of Montevallo- Dept of Comm
Original Message:
Sent: 04-23-2025 22:42
From: Les O'Reilly
Subject: Map Soft Panel
It is in the Personality Menu
------------------------------
Les O'Reilly
Director - Switcher Product Management
Original Message:
Sent: 04-23-2025 19:36
From: Danny Skarka
Subject: Map Soft Panel
Hello ... again,
Is there a way to map the crosspoints on the soft panel?
------------------------------
[Danny] [Skarka] Ross Pilot since Synergy
[Producer, Director, Technical Director]
San Francisco United States
------------------------------
